Remote Traffic Measurement Sensor

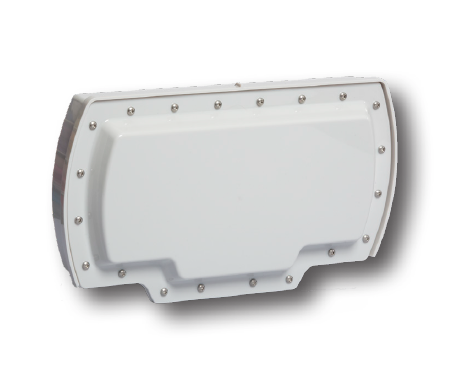

RTMS Echo – High-Precision Side-Fire Radar Sensor for Smart Traffic Management
Developed through years of experience, RTMS Echo is a side-fire radar sensor that provides transportation professionals with highly accurate, reliable, and easy-to-use traffic data. Mounted roadside, RTMS Echo delivers real-time information on volume, occupancy, speed, and classification across up to 12 configurable detection zones.
Installation Made Easier Than Ever
With its built-in alignment tool, automatic sensor configuration, and wireless setup via mobile device or tablet, RTMS Echo offers a seamless installation process.
High-Accuracy Data Tailored to Your Needs
Collected data is delivered with high precision and can be formatted to match the specific requirements of your organization or public authority.
Unleashing Infrastructure Potential with RTMS
RTMS technology maximizes the use of existing infrastructure and provides meaningful, trustworthy data to help cities improve road safety and traffic efficiency.
TECHNICAL SPECIFICATIONS
📡 Radar Coverage
- Effective Elevation Angle: Up to 78°
- Range: 0 – 76 m (0 – 250 ft)
- Effective Azimuth Angle: Narrow, up to 5°
🎯 Accuracy & Detection Capabilities
- Radar Transmitter: High-accuracy speed and direction detection per vehicle using dual receiver antennas and speed trap algorithms
- Lane Width: 1.8 – 5.5 m (6 – 18 ft)
- Detection Zones: Up to 12 configurable zones
📶 Frequency Band
- K-band radar (24 GHz high-resolution band)
⚡ Electrical Specifications
- Operating Voltage: 12–24V DC
- PoE Support: Passive Power over Ethernet
- Power Consumption: 7.3 Watts
- Surge Protection: Compliant with NEMA 2.8.1.3 standards
🔗 Connectivity Interfaces
- Ethernet: 10/100 Base T, TIA568B wiring standard
- Wi-Fi: Built-in access point for mobile configuration
💾 Data Storage & Access
- Storage Capacity:
• 1,000,000 vehicle records
• 10,000 interval records
• All data stored in non-volatile memory - Data Access (Echo API):
• Volume and occupancy
• Vehicle class counts
• Gap and headway
• 8 speed bins
• Average speed and 85th percentile speed
• Vehicle-specific data (speed, length, direction)
• Sensor voltage and length-based classification (8 categories)
• Supports Sx-300 and Wavetronix protocols
🔧 Maintenance & Reliability
- MTBF: 90,000 hours (~10 years)
- Maintenance: No scheduled maintenance required
- System Event Logging: Available
⚙️ Mechanical Features
- Mounting: Universal bracket compatible with all structures, 3-axis adjustable and lockable
- Dimensions: 32 x 18 x 7 cm (12.5 x 7.25 x 2.5 in)
- Weight: 1.5 kg (4.5 lbs including bracket)
- Effective Surface Area: 100 in²
🌡️ Environmental Durability
- Temperature Range: -40°C to +74°C
- Vibration Resistance: NEMA TS2 2.2.8.4
- Wind Load: Up to 241 km/h (150 mph)
- Resonance Test: NEMA TS2 2.2.8.3
- Impact Test: NEMA TS2 2.2.9.2
- Waterproofing: IP67-rated enclosure
✅ Certifications & Compliance
- FCC: Title 47, Part 15
- UKCA
- CSA (Canada): C108.0-M1983
- CE: EN300 440, EN301 498-51, EN301 489-17, EN301 489-19, EN303 413
🛡️ Warranty
3-Year Product Warranty
